(點圖可放大檢視)

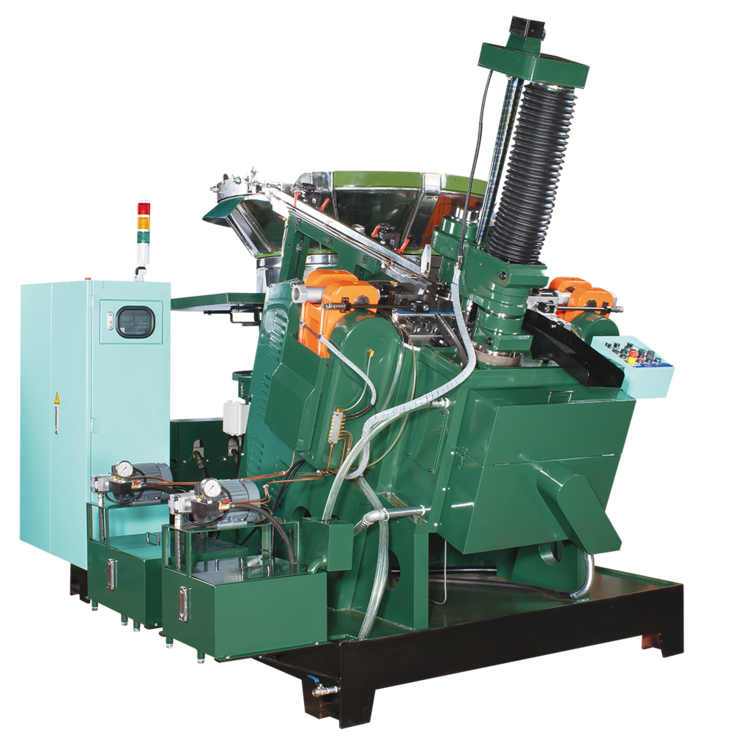

PM-Wmodle 機器規格
|
機種
MODEL |
PM-Wmodle |
|
生產能力 MANUFATURING CAPACITY |
For cabon steel: 6# - 20# (Blank dia 2.8 - 10) For stainless steel: 6# - 16# (Blank dia 2.8 - 5.8) Point No.1 - No.8 Lenght 12 - 450mm |
|
生產速度 MACHINE SPEED |
"Single" function: 50 - 300 pcs/min "Double" function: 25 - 150 pcs/min |
|
主馬達
MAIN MOTOR |
15HP (20KW)/ 6P |
|
速度控制
SPEED REGULATION |
變頻器調整 INVERTER (INFINITE) |
|
動作控制
AUTO-ACTION&DETECT CONTROLLER |
PLC及空壓離合器煞車器 PLC(Program Logic Controller)&Air-pressure Clutch Brake |
|
給料裝置 BLANK FEEDING |
碗式震動機 1000mm / 1200mm / 1500mm |
|
機械尺寸
MACHINE SIZE |
230(W)*300(D)*200(H)/cm |
|
裝箱尺寸
PACKING SIZE |
245(W)*315(D)*220(H)/cm |
|
淨 重
NET WEIGHT |
5,350Kgs(Approx.) |
|
毛 重
GROSS WEIGHT |
5,850Kgs(Approx.) |
