(點圖可放大檢視)

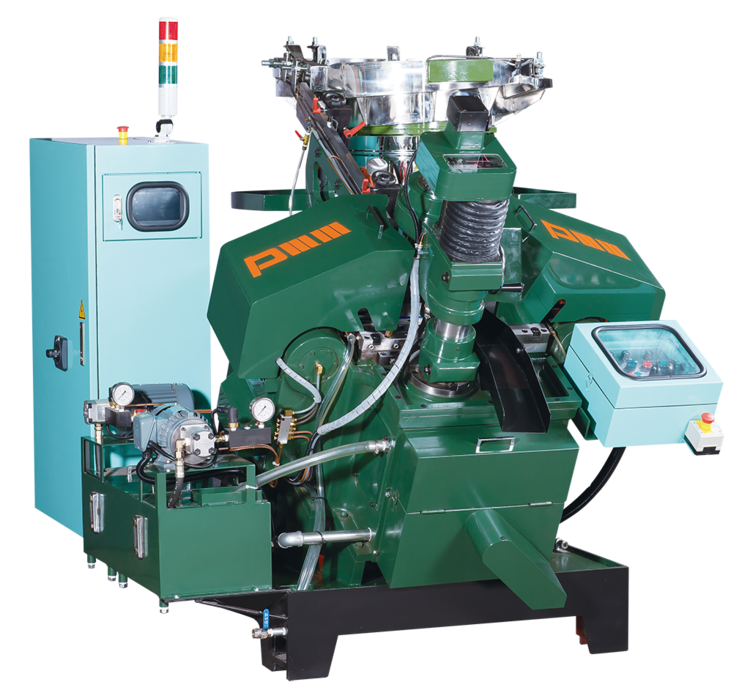

PM-210S 機器規格
|
機種
MODEL |
PM-210S |
|
生產能力 MANUFATURING CAPACITY |
For cabon steel: 4# - 16# (Blank dia 2.4 - 5.8) For stainless steel: 4# - 14# (Blank dia 2.4 - 5.1) Point No.1 - No.6 Lenght 9.5 - 220mm |
|
生產速度 MACHINE SPEED |
"Single" function: 50 - 300 pcs/min "Double" function: 25 - 150 pcs/min |
|
主馬達
MAIN MOTOR |
10HP (11KW)/ 6P |
|
速度控制
SPEED REGULATION |
變頻器調整 INVERTER (INFINITE) |
|
動作控制
AUTO-ACTION&DETECT CONTROLLER |
PLC及空壓離合器煞車器 PLC(Program Logic Controller)&Air-pressure Clutch Brake |
|
給料裝置 BLANK FEEDING |
碗式震動機 620mm / 720mm / 850mm |
|
機械尺寸
MACHINE SIZE |
180(W)*240(D)*185(H)/cm |
|
裝箱尺寸
PACKING SIZE |
195(W)*225(D)*205(H)/cm |
|
淨 重
NET WEIGHT |
2,850Kgs(Approx.) |
|
毛 重
GROSS WEIGHT |
3,250Kgs(Approx.) |
