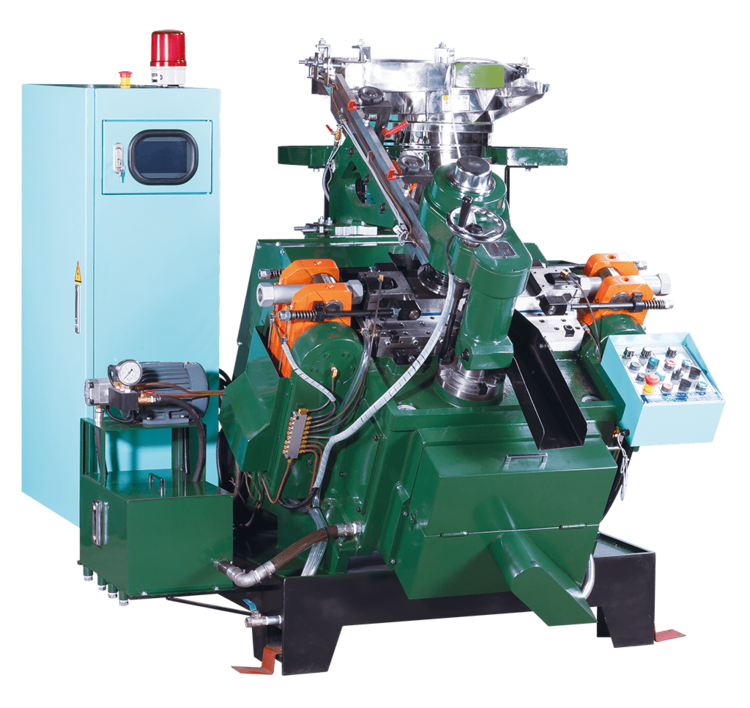

PM-100 機器規格
|
機種
MODEL |
PM-100 |
|
生產能力 MANUFATURING CAPACITY |
4# - 10# (Blank dia 2.4 - 3.8) Point No.1 - No.3 Length 9 - 100mm (Vibrator ø620) Length 9 - 130mm (Vibrator ø720) |
|
生產速度 MACHINE SPEED |
100~600 pcs/min |
|
主馬達
MAIN MOTOR |
5HP (3.7 KW)/6P / 7.5HP (5.5KW)/ 6P |
|
速度控制
SPEED REGULATION |
變頻器調整 INVERTER (INFINITE) |
|
動作控制
AUTO-ACTION&DETECT CONTROLLER |
PLC及空壓離合器煞車器 PLC(Program Logic Controller)&Air-pressure Clutch Brake |
|
機械尺寸
MACHINE SIZE |
160(W)*190(D)*165(H)/cm |
|
裝箱尺寸
PACKING SIZE |
175(W)*205(D)*185(H)/cm |
|
淨 重
NET WEIGHT |
2,100Kgs(Approx.) |
|
毛 重
GROSS WEIGHT |
2,400Kgs(Approx.) |
